Following softwares are required for this setup, WebLogic Server 12c (12.1.3.0.0), Fusion Middleware Infrastrucuture, Application Development Runtime (ADR) 12.1.3.0.0, JDK7 and JDeveloper 11g.
Download the below specific softwares from OTN site,
fmw_12.13.0.0_wls.jar
wls1213_dev_update3.zip
fmw_ADR_12.1.3.0.0_infrastructure_Disk1_1of1.zip
jdk-7u80-linux-x64.tar.gz
Download 12c weblogic
http://www.oracle.com/technetwork/middleware/fusion-middleware/downloads/index.html
Download JDK 1.7
http://www.oracle.com/technetwork/java/javase/downloads/java-archive-downloads-javase7-521261.html#jre-7u80-oth-JPR
Download Application Development Runtime (ADR)
http://www.oracle.com/technetwork/developer-tools/adf/downloads/index.html
Pre-requisite on Linux 64bit OS
vi /etc/security/limits.conf
fmwadf soft nproc 2047
fmwadf hard nproc 16384
fmwadf soft nofile 4096
fmwadf hard nofile 65536
fmwadf soft stack 10240
useradd fmwadf
usermod -u 504 -g dba -G dba,oinstall fmwadf
passwd fmwadf
Install WebLogic Server
# which java
/u03/oracle/mwadf/jdk1.7.0_80/bin/java
# java -jar fmw_12.1.3.0.0.wls.jar
Install Application Development Runtime (ADR)
The Application Development Runtime (ADR) is used to extend a Java EE server (WebLogic or WebSphere) with the ADF Runtime libraries. This prepares the server to accept the deployment of ADF based applications and hence the running of said applications.
Download and install ADR 12c.
Download software from
http://www.oracle.com/technetwork/developer-tools/adf/downloads/index.html
# chmod -R 777 fmw_12.1.3.0.0_infrastructure.jar
# which java
/u03/oracle/jdk1.7.0.80/bin/java
# java -jar fmw_12.1.3.0.0_infrastructure.jar
At the end of the installation an 'em' enterprise manager directory gets created in the MW_HOME directory /u03/oracle/mwadf/em
CREATE NEW DATABASE 'REPODB'
Create a new repository database (11g or 12c) that will host the repository schemas,
·
Metadata
Services (MDS)
·
Audit
Services (IAU)
·
Audit
Services Append (IAU_APPEND)
·
Audit
Services Viewer (IAU_VIEWER)
·
Oracle
Platform Security Services (OPSS)
·
User
Messaging Service (UMS)
·
WebLogic Services
(WLS)
·
Call
Control (UCSCC)
·
Service
Table (STB)
Note: The database should character set of AL32UTF8, and National Character Set of AL16UTF16 Unicode UTF16.
Configure the Listener and register the database service "repodb.oracle.com".
CREATE NEW RCU SCHEMAS USING RCU 12.1.3 UTILITY
From 12c, RCU utility comes with the Infrastructure software that was installed in the previous step.
RCU will create the following schemas in the database.
Metadata Services (MDS)
Audit Services (IAU)
Audit Services Append (IAU_APPEND)
Audit Services Viewer (IAU_VIEWER)
Oracle Platform Security Services (OPSS)
User Messaging Service (UMS)
WebLogic Services (WLS)
Call Control (UCSCC)
Service Table (STB)
# su - fmwadf
# cd /u03/oracle/mwadf/bin
# which java
/u03/oracle/jdk1.7.0_80/bin/java
# export JAVA_HOME=/u03/oracle/jdk1.7.0_80

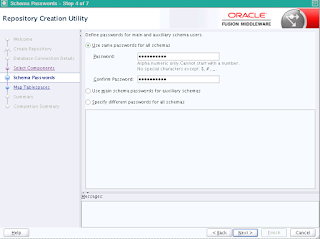

# ./rcu
Create WebLogic Domain and Managed Server for ADF
export MW_HOME=/u03/oracle/mwadf
export WL_HOME=$MW_HOME/wlserver
export ORACLE_HOME=$MW_HOME
export DOMAIN_HOME=$MW_HOME/user_projects/domains/adf_domain
export JAVA_HOME=$MW_HOME/jdk1.7.0_80
export PATH=$ORACLE_HOME/OPatch:$JAVA_HOME/bin:$PATH:/u03/oracle/mwoam/modules/org.apache.ant_1.7.1/bin:.
# cd /u03/oracle/mwadf/wlserver/common/bin

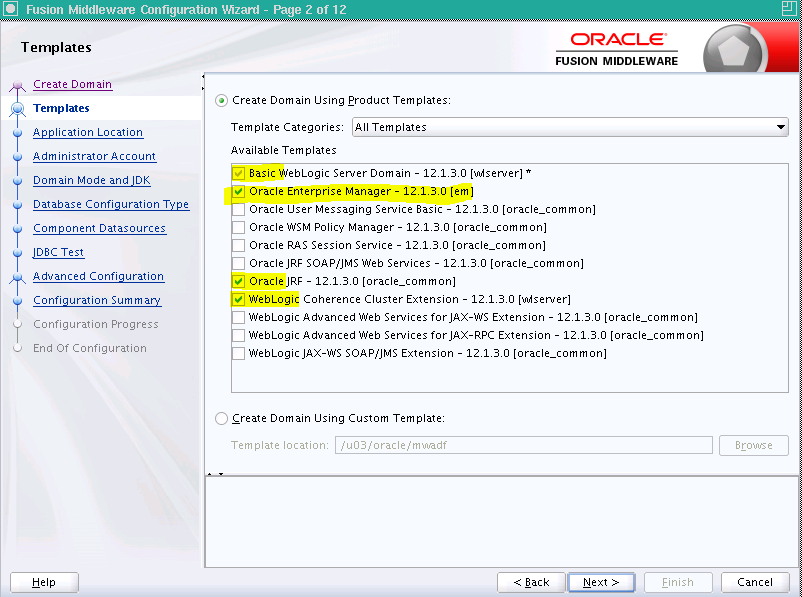

# ./config.sh
Port Pool = 10
Node Manager Listen Port set from 5556 to 5566.
On the "Assign Servers to Machines" screen, select a machine in the right pane, only ADFMachine in this case, and then select the ADFServer in the left pane and shuttle it to the right. This assign the ADFServer to the ADFMachine for purposes of management. Select Next to continue.
Apply Java Runtime Files (JRF) Template to the Managed Server
Now that the ADFServer has been started, the reader will need to apply the JRF Template to the Managed Server in order to deploy and run their ADF applications on the server. In an earlier step, the ADR libraries (required libraries to run an ADF application on WebLogic or WebSphere) were installed and the Managed Server was created. When the JRF Template is applied to the Managed Server, the ADR libraries ared added to that server in order to run ADF based applications. This can also be done via command line invocation or through Oracle Enterprise Manager as demonstrated here.
Launch a web browser and enter the url for Enterprise Manager:
http://ed-olraclin.oracle.com:7011/em. If a different port for the AdminServer has been used, then simply replace it with the one supplied here. This also applies to the host name. Use the same credentials (uid/pwd) here that was used during creation of the adf_domain earlier. These credentials are also the same as used to login to the Administration Server.
Click on ‘APPLY JRF TEMPLATE’
Create boot.properties file for auto login.
Create boot.properties file in /u03/oracle/mwadf/user_projects/domains/adf_domain/servers/AdminServer/security/boot.properties
Then restart the admin and managed servers.
URLs & Ports
http://ed-olraclin:7011/console
http://ed-olraclin:7011/em
ADFServer Server Listen port : 7013
Node manager listen port 5566
START NODE MANAGER FOR ADFServer
su - fmwadf
export MW_HOME=/u03/oracle/mwadf
export WL_HOME=$MW_HOME/wlserver
export ORACLE_HOME=$MW_HOME
export DOMAIN_HOME=$MW_HOME/user_projects/domains/adf_domain
export JAVA_HOME=$MW_HOME/jdk1.7.0_80
export PATH=$ORACLE_HOME/OPatch:$JAVA_HOME/bin:$PATH:/u03/oracle/mwoam/modules/org.apache.ant_1.7.1/bin:.
From 12c version of Weblogic, Node manager should be started from Domain_home/bin directory i.e from adf_domain/bin directory itself.
cd /u03/oracle/mwadf/user_projects/domains/adf_domain/bin
nohup ./startNodeManager.sh &
tail -f nohup.out
cd /u03/oracle/mwadf/user_projects/domains/adf_domain/bin
nohup ./startWebLogic.sh &
Bibliography
http://www.oracle.com/webfolder/technetwork/jdeveloper/howto/11114/managedserver/wlsadfms.html
